Part of the boat
| Detail | | Boat | By Hallberg-Rassy: HR 46 #99 from 1997
Completely refitted by Adams Boat Care in 2013
Thereafter annual refit by Adams Boat Care (2014-2019) and by Marina Coruna (2019-) | | Deck | By Adams Boat Care: Vacuum glued 9mm teak, (new 2013). New teak in cockpit (2017). New teak on cockpit floor (2018), refurbished hardtop by Marina Coruna (2022) | | Windows | By Lewmar, new glass 2013 | | Hatches | By Lewmar (new 2013) | Upholstery
| Mattresses (by Pettersson, 2013)
Toppes on Mattresses (Monli, Brooks 1553, new 2022)
Settee upholstery (by Pettersson, Tathra 63, 2013)
Cabin curtains (by Pettersson, Tathra 63, 2013)
Salon Curtains (by Monli, Saturno SAT-02, new 2022)
Bathroom Curtains (by Monli, Vega M-1, new 2022)
Cockpit cushions (by Monli, Timor Delilmar 5004, new 2022)
Carpets (by Pettersson, 2013, but not used in salon when sailing in warm climate)
| | Through-hulls | First replacement in 2013 to Bronze (instead of standard Brass)
All replaced again in 2021, this time by TruDesign. | Rig and Sails Equipment
| Detail | | Mast | Seldén, cutter, with double spreaders, fixed cutterstay, serial No D21-290-3058.3641
14mm lower shrouds, 12mm for the rest (2022)
New standing rigging in 2013, then again new standing rigging in 2022
New Seldén rigging screws in bronze and extra toggles (2022)
All new halyards and sheets by Robline (356m lines in total) in Dyneema in 2022
New Antal halyard system in 2022 | | Furling | Electric inmast and electric genoa (new 2013).
Manual furling of the fixed cutter stay sail (new 2018)
Electric genoa furler upgraded and changed to 400E Mk2 (2022) | | Boom | B200 type. Serial No B200 3034 3624
1 spinnakerboom stowed along mast | | Rodkicker | by Seldén: New bigger Rodkicker30 (2022) | | Clutches | 7 clutches replaced by Spinlock XTS0814 (4 on mast plus 3 on aft deck) from 2022
1 clutch replaced by Spinlock XTS0610 (cutter stay furler) from 2022 | | Winches | by Lewmar, genoa: 64CEST electrical (2), mainsail: Lewmar 46CEST electric (1) (new 2013), on mast: TBA | | Main Sail | Original by Elvstrom: MC2131, 53m2, EMS, HydraNet, 385g, 5 vert full battens, (new 2013)
Current by Elvstrom: CM2034617
Furling Main EMS 5V
Cloth : HydraNet RADIAL 393 Cut : trioptmal
5 Battens (heavy 10 mm) Pockets slimdesign
Extra strong design. Clewblock from ANTAL Draftstribes BLUE
Leechline Vectran
HR 46 logo Blue
Sailnumber 99 Blue
UV in Clew Silver Grey
Area : 50.2
(new in 2020) | | Genoa | Original by Elvstrom: GC2111, 59 m2, HydraNet, 385g, (new 2013)
Current by Elvstrom:
Furling Genoa Spec. design Cloth : HydraNet RADIAL 393 Cut : Trioptimal
Heavy Soft Clew
UV Sunbrella Silver Grey
Draftstribes BLUE
Area : 64.20
Leechline Vectran
Telltales
(new 2020) | | Staysail | by Elvstrom: 15 m2, HydraNet, 450g, (new 2013) on fixed inner forestay on furler (new 2018) | | Gennaker | by Elvström: Code 2-A, 150.3 m2, Radial, Trioptimal, CPN180 (new 2017) | | | | Propulsion Equipment
| Detail | | Engine | Volvo Penta D2-75, (new 2018)
Online spare parts: see here.
Drawings on engines: see here.
New silent feet (2023)
New exhaust elbow (2023)
Refurbished turbo (2023)
New cutlass bearing (2023)
New “Black Jack” (2023) | | Funnel | by Mr Funnel for safe tanking. See also: here. | | Rope Cutter | By Ambassador Marine: Ropestripper (new 2013) | Coupling
| By Aquadrive: Flexible coupling (new 2018) | | Fuel Filters | By Racor: Two 500MAM10 (for Volvo&Onan Generator) | | Water Alarm | by Racor: RK 30880 Water Probe Kit | | Fuel hoses | Fulfilling fire safety ISO 7840.04-A1 | Electrics Equipment
| Detail | | Overall Concept | by Sellpower. See drawing | | Batteries | by SuperB: 24V 360Ah Li-Fe (new 2018)
plus 12V 100Ah AGM engine&generator start(new 2020)
plus 12V 110Ah AGM communication/emergency battery, (new 2022) | Insulation Transformer
| by WhisperPower:WP-GI, 3.5 kW incl Softstart
(new 2013) | | Charging/Inverter 24V | by WhisperPower:
WPC-3500-24, (new 2022)
Additional WP-BC Supreme 24V/30A (new 2022) for boosting charging and redundancy | | Charger 12V | by WhisperPower:
WP-BC Supreme 12 V – 20 A, (new 2014)
Additional Battery-to-Battery (24V-12V) charger by Victron: Orion Tr Smart 24/12/20A) | | 1st 24V supervision | By WhisperPower:
WPC-RCC, (new 2022) | | 2nd 24 supervision | by WhisperPower:
5″ WP Touch (new 2019) | | 1st 12V supervision | By WhisperPower:
WBM battery monitor (new 2022) | Alternator 1
| by Iskra, 12V/100A on main engine (new 2018) | | Alternator 2 | on Onan Generator:
12V on generator (new 2022) | | Alternator 3 | by WhisperPower:
High Output Alternator (HOA) 24V/110A on main engine, (new 2018) | | HOA control | by WhisperPower: WP-ACR 24V 3-step chargers for HOA, (new 2018) | Battery Isolator
| by WhisperPower: WBI 150-3 IG, (new 2013) | | DC/DC converters | by WhisperPower: Three 16A converters (for LED lamps), (new 2013) | | Generator | New 6kW Onan 6.0MDKBJ Onan by Cummins 2400rpm (new 2022)
Previously: by Westerbeke: 7.5 kW, 1500 rpm, 34A, 14 hp engine, Model 7.5BTDA, (installed 2013, never run before) | Steering Equipment
| Detail | | Helm | Whitlock, Wheel Steering by rod | Emergency
| Tiller steering from aft deck | 1st Pilot
| By Furuno: 711 & FAP-7002 (new 2013) | 2nd Pilot
| By Furuno: 711 & FAP-7002 (new 2013), | 3rd Pilot
| By Raymarine: p70s & ACU400 & EV-1 inl Remote control (new 2019) | | Linear drive units | By Raymarine: 2 x Type II linear drives for Pilot 1 and 3 (new 2013) | Circular drive unit
| By Whitlock: 1 x circular drive for Pilot 2 | | Bow Thruster | By Sleipner/Side-power: Twin counter rotating SE170 Tunnel thruster with 170kg thrust at 21V and 210kg thrust at 24V. 8kW/10.7hp power. (new 2022) | Navigation Equipment
| Detail | | Navigation System | by Furuno:

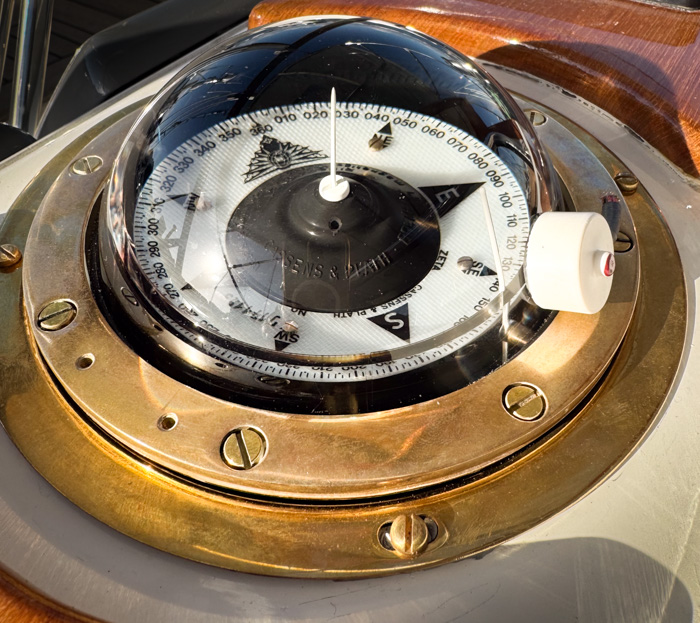

See plan and story. (all new 2013 and annually updated, e.g. in 2015, 2019, 2021) | | Primary Compass | by Suunto on steering pedestal | | Satellite Compass | by Furuno: SC-33 (new 2019) | | 1st Fluxgate Compass | by Furuno: PG-700 (new 2013) | | 2nd Fluxgate Compass | by Furuno: PG-700 (new 2015) | | 3rd Fluxgate Compass | by Raymarine: Roll, Pitch, Acceleration, Heading sensor EV-1 (new 2019) | | Plotter | TZT16F, Navnet TZtouch v.3 (new 2021) | | Radar | by Furuno: Solid State Doppler Radar DRS-4 NXT, (new 2019) | | Radar mount | by Hallberg-Rassy, (new 2013) | | Display | by Furuno: MU-150HD 15″ screen at navstation, (new 2021), | | Remote Displays | by Furuno: 2 x RD-33 in aft cabin and at navstation, (new 2013) | | Nav PC | by Apple: Mac mini with Bootcamp running Windows 10 simultaneously | | Nav Software | by MaxSea: TimeZero v.4 incl routing module | | Basic instruments | by Furuno: 4 x FI70, (new 2019) | | Sounder | by Furuno:: BBDS1 Bottom Discrimination Sounder, (new 2013) | | Log, Sounder and Water-Temp | by Airmar: DST810 (new 2023) | | Handheld Sounder | by Plastimo: Echotest II | | Laser Rangefinder | by Huepar: HLR1000 Rangefinder 1,000 Metres | | Multiplexer | by Shipmodul: Miniplex-3Wi-N2K translating NMEA183, NMEA2000, Seatalk into each other transmitting nav-data via WiWi | | 2nd GPS | by Furuno: GP-33 (new 2013) | | 3rd GPS | by Furuno: FA-50 (new 2013) | | 4th GPS | by Garmin: handheld emergency in safe (new 2018) | | 5th GPS | by Garmin: inReach Mini2 | | AIS | by Furuno: FA-50 class B transponder, (new 2013) | | Binoculars | by Steiner: 7x50AC Commander III w/compass | | Primary Sextant | by Cassens&Plath: Horizon Ultra (new 2022) | | Secondary Sextant | by Celestair: Astra III B Delux with WH Mirror (2003) | | Chronometer | by Wempe: Model 10058 Precision Chronometer (new 2022) | | Barograph | by Bohlken Westerland: BG1512G Marine Barograph (new 2018) | | Software | by IMRAY: Tides Planner for Tidal Calculations | | | by Pangolin: Nautical Almanac | | | by Pangolin: Astro Calculator for Celestial Navigation | | General Electronic Charts | by MaxSea/Mapmedia:
MWVJENM019 (North and Baltic Seas) (replaced annually for the cruising area of the year)
SDVJEWM009 (Atlantic European Coasts) (replaced annually for the cruising area of the year) | | Paper Charts | Wherever possible: NV-Charts (replaced annually for the cruising area of the year)
otherwise: IMRAY (replaced annually for the cruising area of the year) | | Special Charts | By Antares for Scotland | | NavLights | By Lopolight : Complete system with decklights in red and white, red-over-red (Not under Command), red-over-green (Sailing), Tri-color, extra strong 5 nm steaming light, strobe emergency light and much more. IMO Wheelmark approved (new 2023) | | NavLight Control | By Czone: 3 x Contact 6 PLUS and 2 x programmable buttons (at navstation and pedistal) | Communications Equipment
| Detail | | Main VHF | by Furuno: FM-4721 with second handset HS-4721 in cockpit (new 2013) | | 2nd VHF | Emergency handheld by Jotron: TRON TR30 GMDSS, waterproof, floating in Grab Bag (new 2019, new battery 2024) | | 3rd & 4th VHF | by ICOM: 2 x IC-M25, waterproof, floating (new 2017 and 2020) | | MF/HF | SSB by Thrane&Thrane: System 4000, 150W, with DSC, GMDSS for Area A2, (from Regina, i.e. 2003) | | Iridium | By Thrane&Thrane: System 4000, | | Tracking and Emergency | by Garmin: inReach Mini2 (new 2021) | | Tracking Cloud Softare | by Aiticon: Voyoa; presented on web-page here. | | Ground plane | 3 x outside hull earth planes | | Navtex/WxFax | by Furuno: FAX-30, (new 2015) | | Sound Signal | by Marco: EMH Whistle with horn, fog signal, (new 2013) | | GPS antennas | By Furuno: 2 x GPA-017S (for AIS and GP-33 GPS), (new 2013) | | VHF antennas | By AC Marine: CX4, one in mast top, (new 2013) | | | By AC Marine: CELmar0-1 as spare, (new 2013) | | AIS antenna | By AC Marine: CELmar0-1AIS on mast top, (new 2013) | | FM antenna | By AC Marine: FAME1 on mast top, (new 2013) | | WiFi antenna | By AC Marine: CEL24 on aft pole, (new 2013) | | WiFi amplifieier | By UBNT: Bullet.(new 2013) | | WxFax/Navtex antenna | By Furuno: Fax5 on aft pole, (new 2013) | | Software | by Pangolin: HF Propagation predictor for SSB | | | by Xaxero: WindPlot GRIB-file Viewer | Safety & Security Equipment
| Detail | | Life raft | Survitec/Zodiac Xtrem N137H SOLAS-A for commercial sailing (new 2013) annually serviced | | Grab Bag | in 2 Pelicases equipped to the highest of standars, comfort and safety. See content here. | | Fire Blankets | 2 x Blankets (under Navtable + under salon table) | Fire Safety and Extinguishers
| 1 x 2kg CO2 34B (companionway)
3 x 2L Foam 5A34B (in each cabin)
1 x 6kg Powder 55A233B (in cockpit locker)
1 x 2kg Powder 13A8B (under salon table)
Automatic SeaFire NFD 300A (for engine room; new 2023) All serviced annually and replaced accordingly | | Lithium Fire Extinguisher | Special 6 kg 13A LithEx fire extinguisher with brand new fire fighting medium AVD added to fight burning Lithium Batteries, serviced annually and replaced accordingly | | Fire fighting mask | by Dräger: PARAT 5520 | | Fire Alarm | 4 x optical, 1 x thermal (105 degC in engine room), (new 2017) | | Fire water pump /Deck pump | By Jabsco: 52700-0094, Par-Max 7, deckwash pump, (new 2023) | | Gas Alarm/Solenoid | by Truma GSE (new 2022) | | CO Alarm | Carbonmonoxide alarm | | Fire blanket | 2 x 1.8m x 1.5m | | Manual bilge pump | Jabsco Amazon Warrior, 135 L/min (new 2013, refurbished with new seals 2023) | | Electric Bilge Pump 1 | Whale Gusher, 24V, 14L/min (new 2013) | Electric Bilge Pump 2
| Rule 4000 in bilge, 12V (communcations-battery), 256 L/min, (new 2013) | | Electric Bilge Pump 3 | Rule 4000 in bilge, 24V, 256 L/min, (new 2013) | | Electric Bilge Pump 4 | 230V Ebara Best One 10,200L/h @ 1.5m (170L/h @ 1.5m, new 2013) | | Electric Bilge Pump 5 | 230V Kärcher SP 22.000 20,000L/h @ 1.5m (333L/h , movable (new 2025) | | Bilge alarm and electric floating switch | 2 by Wema in bilge (new 2023) | | 1st EPIRB | by Jotron: TRON60AIS, 400MHz, GMDSS, with Hammar H20 hydrostatic release. Seeinstallation (new 2024) | | 2nd EPIRB | by Jotron: TRON60GPS, 400 MHz in grab-bag (new 2022) | | PLB’s | by Jotron: SA20 AIS PLB (new 2024) | | | by Ocean Signal: MOB-1 in 6 life jacket (5 x new 2022, 1 x new 2024) | | SART | by Jotron: Search And Rescue Transponder AIS SART (new 2019, new battery 2024) | | Watermaker | by Katadyn: Survivor 06 Manual (new 2019) | | Life Buoys | Swebuoy: man-over-bord life sling/buoy (new 2017) | | | by MOBLINE: MOB Rescue Line | | Dan Buoy | by Ocean Safety: Horseshoe and Danbuoy combination (new 2015), serviced annually | | Jonbuoy | by Ocean Safety: Jonbuoy Recovery Module (new 2018), serviced annually | | MOB Recovery System | POB-NET (new 2023) | | Emergency Ladder | by Outils-Oceans: Magic Reboard Safety ladder with rigid steps for bow or midship | | Strobe Lights | by Jotron: Life buoy strobe light TRON5F | | | by Jotron: one AQ4 strobe light | | | by Jotron: four AQ5 strobe lights | | Flash Lights | one at each accommodation door | | Search Light 1 | By Aquasignal: Bremen LED | | Search Light 2 | Search light, 55W halogen for on board 12V system | | Offshore Life Jackets | (inspected annually, replaced if not 100% pass) | | MOB retrieval line | MOB Lifesavers in each life jacket. | | MOB retrieval basket | POB-NET | | Jack Stays | by Wichard: Ref 7053 Lyf’Safe, Manual, (New 2022) | | Flares | following MGN280:
6 parachute
6 red handheld
2 buoyant smoke
2 white anti-collision. | | Lightning Protection | Connecting Mast with keel bolt via an ignition gap, (New 2013) | | Cable Cutter | Felco C16 for emergency demasting plus battery driven angle grinder (to be added 2022) | | Drogue | by Hathaway: Galerider Storm, 36″ | | Leakage fighting | by Rochmarine: Stay Afloat | | Grab-Bags for Life-Raft | 1 x Pelicase 1520 + 1 x Pelicase 1550, see contents here | Anchor and Mooring Equipment
(click for more info)* | Detail | | Main Anchor | By Rocna: 40 kg, (new 2019) | Anchor Chain
| By Kettenwälder: 80m, 10mm stainless steel chain, Part No 105 810 GB Duplex 1.4462, Certificate, (new 213) | | 2nd Anchor | Fortress FX85 | | 2nd Cable | By Poly Produkter: 16mm 50m rope plus 15m chain | | 3rd Anchor | Bruce, 15 kg | | Windlass | Lofrans X3 in classic chromed bronze, 1700W, (new 2022), model No 602103 | | Deck Switches | By MZ Electronics: FOSWI foot switch (new 2023) | | Chain stopper | By Lofrans, model No 636257 (new 2022) | | Snubber | By Wichard: Chain hook and separate line | | Cables/Rods | 2 x 50 m by Polyropes | | | 3 x 40 m | | | 2 x 30 m | | | numerous x 10 m for mooring | | Compensators | by Aronowitsch&Lyth AB: Mooring Compensator “Bungy“ | | Chafe Protection | by WaterlineDesign: Spiroll Protection | | Embarkation | Opening Gates in life line | | | Bow Ladder | | | By Batsystem: Side ladder SL65 | Galley, Head, Water and Comfort Equipment
(click for more info)* | Detail | | Stove | by GN Espace: Levante,(new 2o22) | | Grill | by Magma: Gourmet Series “CATALINA II”™ “Infrared” gas grill on pushpit (new 2019) | Gas Bottles
| 1 x 6kg Al Swedish plus 2 x 3kg Camping Gaz | | Solenoid for Gas | by TRUMA: GSE | | Gas Adapter | by Fogas: Part No 12-6022 to fill up Gas in other countries | | Watermaker | ECHOTec 950-PRO-2, 230V, 145 L/h, (new 2013) | | Water Filter | By General Ecology: Seagull IV Sub-Micron filter plus active coal filter in central water system | | Washing Machine | By Candy (new 2019) | | Hot Water Boiler | by Thermoprodukter: Isotemp Basic 40L 230V DS, dual heating slings, heated by main engine and generator plus 230V power (new 2018) | | Heaters 1 & 2 | by Webasto: 2 x Air Top Evo 3900 (new 2015, new burners 2022) | | Heater 3 | by Ebersprecher: 4224WA, using cooling water from main engine for heating while motoring | | Domestic Water Pump | By Jabsco: Par-Max 4, model No 31620-0094, (new 2024, 2021 etc) | | Fridge | by Isotherm with Danfoss compressor, water cooled (all new including pipes and evaporator new 2022) | | Freezer | by Isotherm with Danfoss compressor, water cooled (new 2023) with new evaporator 2022, double thermostat (thus also usable as fridge | | Toilets | By Jabsco: 2 Quiet Flash electric, freshwater, (Part No 37045-1094, New 2013) | | Septitanks | by HR: 2 x 57L stainless steel (new 2013) | | Ventilation | By Lewmar: one hatch in each accommodation, Medium Profile, (new 2013) | | | 4 Dorado vents, extra large model, (new 2013) | | | 3 AirOnly Low Profile vents (new 2013) | | | 12 opening ports (new glass 2013) | | | 6 Hella Turbo Fans, (new 2013) | | Interior Lights | All interior lights by Båtsystem. Constantly upgraded and updated to newest models. | | Mattresses | by Pettersson: Spring mattress in aft cabin, Tathra63 upholstery, (all new 2013) | | Lee berths | by Rössy: 2 mid cabin, 2 saloon, 2 aft cabin, (New 2013) | Bimini
| by Rössy, (new 2013) | | Hardtop extension | by Rössy, (new 2013) | Stereo System
| By Marantz: MCR 503. (new 2013) | | Saloon Speakers | by ELAC: 310 IB. (new 2013) | | Cockpit Speakers | by Bose: 151. (new 2013) | | | | Auxiliaries Medical Partner
| Official Medical supplier: Medical Support Offshore (MSOS, Dr. Spike Briggs and his team) | | Medicines | Fulfilling and surpassing the new legislation for 2022: MSN1905 for Area 1
Stored in three Pelicases (2 x 1550, 1 x 1520) and several other soft and watertight cases. | | Oxygen Generator | By MSOS: Oxygen Concentrator Kit (5 litre/min, 95% O2) 230v, continuous production of oxygen. (new 2018) | | Defib | By MSOS: Defibrillator (new 2022) | |
